Calcium Fluoride Round Windows

Calcium Fluoride Windows（round）

Calcium fluoride round windows have excellent UV and infrared transmittance. The optical wavelength is 0.13 microns in vacuum ultraviolet and 10 microns in far infrared, including five levels: IR infrared, VIS visible, UV ultraviolet, VUV vacuum ultraviolet, and quasi molecular level. Used to separate the environment on both sides, isolating the interior and exterior of the instrument, and protecting internal components. It has a high laser damage threshold and is used to produce optical components for excimer lasers, mobile phone lenses, camera lenses, infrared sensor windows, temperature measurement observation windows, etc. High hardness, strong resistance to mechanical and thermal shock, good seismic resistance and thermal shock resistance, as well as good mechanical processing performance. UM OPTICS can provide different types of window sheets such as circular, rectangular, wedge-shaped, perforated, and stepped sheets.

I want to customize Consult

Price
Invoice
Quality
Deivery
Logistics
Receive
Returns
Customized

Please leave a message or inquire about the price online to ensure a satisfactory price for you.

All products are provided with invoices, with a tax point of 13.

The product undergoes multiple inspections before being stored, and the quality is guaranteed. Please use it with confidence.

Spot products, shipped within 48 hours. For non stock or customized products, please consult.

International order logistics include DHL, FedEx, TNT, and EMS

When receiving the product, please ensure the integrity of the product packaging box first. If there is serious damage to the appearance, please refuse and contact us, and we will handle it for you as soon as possible.

Optical products are special items and cannot be returned or exchanged unless there is a quality issue with the product itself

If you need customization or bulk production, please contact us online and we will offer you a discounted price.

	Dia(mm)	ThK(mm)	Parallelism	Surface Quality	PV@632.8nm
	Screen Reset 55 52 50.8 38 25 22 21 20 19.05 19 18 17.5 15 13 12.7 12 10 7 6 5 4	Screen Reset 2 6 5 4 3 1 2.5 1.5 0.5 8 0.4	Screen Reset <3′	Screen Reset 40-20 60-40 80-50	Screen Reset λ/2
More+ Less	55	2	<3′	40-20	λ/2
Φ55mm，Thickness 2mm，Calcium Fluoride Round Windows Number：PCa01G002 Dia(mm)：55 ThK(mm)：2 Parallelism：<3′ Surface Quality：40-20 PV@632.8nm：λ/2 Clear Aperture：>90% Diameter Tolerance(mm)：+0.0/-0.1 Thk Tolerance(mm)：±0.1 Transmission Range：0.13-10μm Substrate Material：Calcium Fluoride（CaF2） Bevel(mm)：0.35 Coating：Uncoated REACH：Compliant ROHS：Compliant
More+ Less	52	2	<3′	40-20	λ/2
Φ52mm，Thickness 2mm，Calcium Fluoride Round Windows Number：PCa01G001 Dia(mm)：52 ThK(mm)：2 Parallelism：<3′ Surface Quality：40-20 PV@632.8nm：λ/2 Clear Aperture：>90% Diameter Tolerance(mm)：+0.0/-0.1 Thk Tolerance(mm)：±0.1 Transmission Range：0.13-10μm Substrate Material：Calcium Fluoride（CaF2） Bevel(mm)：0.35 Coating：Uncoated REACH：Compliant ROHS：Compliant
More+ Less	50.8	6	<3′	40-20	λ/2
Φ50.8mm，Thickness 6mm，Calcium Fluoride Round Windows Number：PCa01F073 Dia(mm)：50.8 ThK(mm)：6 Parallelism：<3′ Surface Quality：40-20 PV@632.8nm：λ/2 Clear Aperture：>90% Diameter Tolerance(mm)：+0.0/-0.1 Thk Tolerance(mm)：±0.1 Transmission Range：0.13-10μm Substrate Material：Calcium Fluoride（CaF2） Bevel(mm)：0.35 Coating：Uncoated REACH：Compliant ROHS：Compliant
More+ Less	50.8	5	<3′	40-20	λ/2
Φ50.8mm，Thickness 5mm，Calcium Fluoride Round Windows Number：PCa01F072 Dia(mm)：50.8 ThK(mm)：5 Parallelism：<3′ Surface Quality：40-20 PV@632.8nm：λ/2 Clear Aperture：>90% Diameter Tolerance(mm)：+0.0/-0.1 Thk Tolerance(mm)：±0.1 Transmission Range：0.13-10μm Substrate Material：Calcium Fluoride（CaF2） Bevel(mm)：0.35 Coating：Uncoated REACH：Compliant ROHS：Compliant
More+ Less	50.8	4	<3′	40-20	λ/2
Φ50.8mm，Thickness 4mm，Calcium Fluoride Round Windows Number：PCa01F071 Dia(mm)：50.8 ThK(mm)：4 Parallelism：<3′ Surface Quality：40-20 PV@632.8nm：λ/2 Clear Aperture：>90% Diameter Tolerance(mm)：+0.0/-0.1 Thk Tolerance(mm)：±0.1 Transmission Range：0.13-10μm Substrate Material：Calcium Fluoride（CaF2） Bevel(mm)：0.35 Coating：Uncoated REACH：Compliant ROHS：Compliant
More+ Less	50.8	3	<3′	40-20	λ/2
Φ50.8mm，Thickness 3mm，Calcium Fluoride Round Windows Number：PCa01F069 Dia(mm)：50.8 ThK(mm)：3 Parallelism：<3′ Surface Quality：40-20 PV@632.8nm：λ/2 Clear Aperture：>90% Diameter Tolerance(mm)：+0.0/-0.1 Thk Tolerance(mm)：±0.1 Transmission Range：0.13-10μm Substrate Material：Calcium Fluoride（CaF2） Bevel(mm)：0.35 Coating：Uncoated REACH：Compliant ROHS：Compliant
More+ Less	50.8	2	<3′	40-20	λ/2
Φ50.8mm，Thickness 2mm，Calcium Fluoride Round Windows Number：PCa01F068 Dia(mm)：50.8 ThK(mm)：2 Parallelism：<3′ Surface Quality：40-20 PV@632.8nm：λ/2 Clear Aperture：>90% Diameter Tolerance(mm)：+0.0/-0.1 Thk Tolerance(mm)：±0.1 Transmission Range：0.13-10μm Substrate Material：Calcium Fluoride（CaF2） Bevel(mm)：0.35 Coating：Uncoated REACH：Compliant ROHS：Compliant
More+ Less	50.8	1	<3′	40-20	λ/2
Φ50.8mm，Thickness 1mm，Calcium Fluoride Round Windows Number：PCa01F083 Dia(mm)：50.8 ThK(mm)：1 Parallelism：<3′ Surface Quality：40-20 PV@632.8nm：λ/2 Clear Aperture：>90% Diameter Tolerance(mm)：+0.0/-0.1 Thk Tolerance(mm)：±0.1 Transmission Range：0.13-10μm Substrate Material：Calcium Fluoride（CaF2） Bevel(mm)：0.35 Coating：Uncoated REACH：Compliant ROHS：Compliant
More+ Less	38	6	<3′	40-20	λ/2
Φ38mm，Thickness 6mm，Calcium Fluoride Round Windows Number：PCa01F029 Dia(mm)：38 ThK(mm)：6 Parallelism：<3′ Surface Quality：40-20 PV@632.8nm：λ/2 Clear Aperture：>90% Diameter Tolerance(mm)：+0.0/-0.1 Thk Tolerance(mm)：±0.1 Transmission Range：0.13-10μm Substrate Material：Calcium Fluoride（CaF2） Bevel(mm)：0.35 Coating：Uncoated REACH：Compliant ROHS：Compliant
More+ Less	38	4	<3′	40-20	λ/2
Φ38mm，Thickness 4mm，Calcium Fluoride Round Windows Number：PCa01F026 Dia(mm)：38 ThK(mm)：4 Parallelism：<3′ Surface Quality：40-20 PV@632.8nm：λ/2 Clear Aperture：>90% Diameter Tolerance(mm)：+0.0/-0.1 Thk Tolerance(mm)：±0.1 Transmission Range：0.13-10μm Substrate Material：Calcium Fluoride（CaF2） Bevel(mm)：0.35 Coating：Uncoated REACH：Compliant ROHS：Compliant

Material Data
Optical Properties
Transmission Range	0.13-10μm
Transmittance	>94%@193nm-7.87μm
Refractive Index	1.4288@2.5μm 1.39908@5μm
Reflection Loss	5.4%@5μm(both surfaces)
Absorption Coefficienet	7.8×10-4@2.7μm
Structure	Cubic Crystal System
Cleavage Planes	<111>
Physical Properties
Density [g/cm3]	3.18
Melting Point [℃]	1420
Thermal Conductivity [W/(m×K)]	9.71 @ 293K
Thermal Expansion [10-6/K]	18.5 @ 273K
Knoop Hardness [kg/mm2]	158.3
Specific Heat Capacity [J/(kg×K)]	854
Dielectric Constant	6.76 @ 1 MHz
Young's Modulus (E) [GPa]	75.8
Shear Modulus(G) [GPa]	33.77
Bulk Modulus(K) [GPa]	82.71
Poisson Coefficient	0.26
Chemical Properties
Solubility / g/L	0.016g @ 20℃
Molecular Weight / g/mol	78.0748

Calcium Fluoride Windows（round）

Technical Parameter

Material Data

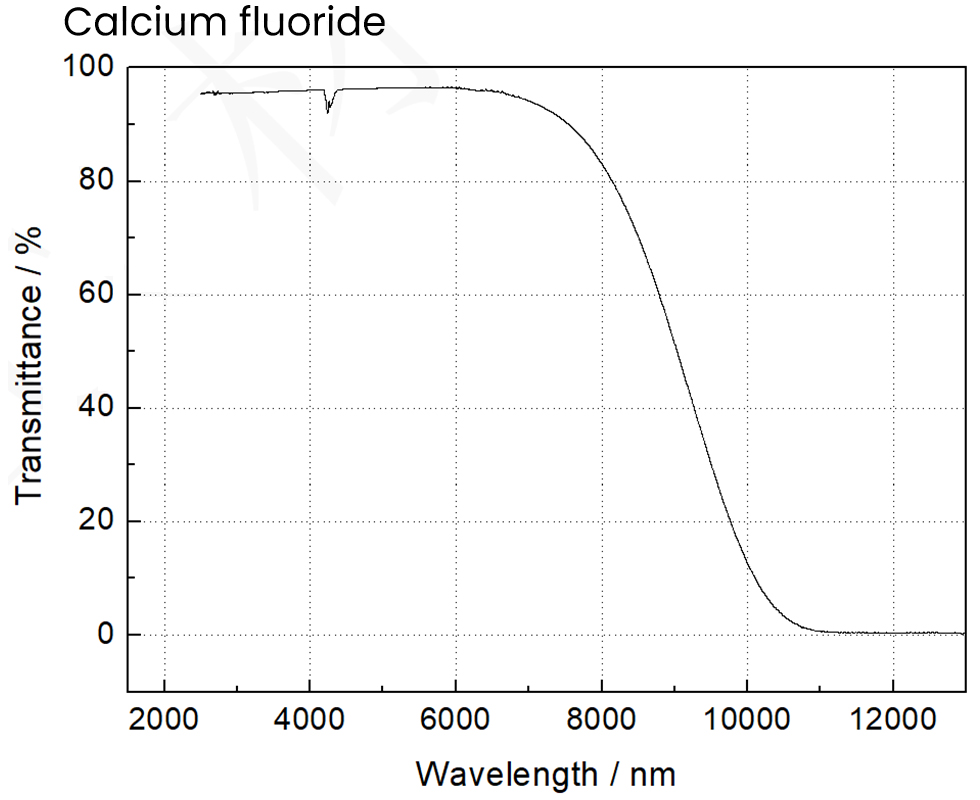

Transmittance
