Zinc Sulfide Rectangular Windows

Zinc Sulfide Windows（rectangular）

Zinc sulfide rectangular windows are used as protective windows for electronic sensors or external environmental detectors. The shape is rectangular, used to separate the inside and outside of the instrument, protecting the internal components. The characteristics are low absorption, low scattering, and hardness and impact resistance. It can have high transmittance in both visible light and infrared, making it an ideal choice for systems with visible light and medium or long wave infrared sensors. UM OPTICS can provide different types of window sheets such as circular, rectangular, wedge-shaped, perforated, and stepped sheets.

I want to customize Consult

Price
Invoice
Quality
Deivery
Logistics
Receive
Returns
Customized

Please leave a message or inquire about the price online to ensure a satisfactory price for you.

All products are provided with invoices, with a tax point of 13.

The product undergoes multiple inspections before being stored, and the quality is guaranteed. Please use it with confidence.

Spot products, shipped within 48 hours. For non stock or customized products, please consult.

International order logistics include DHL, FedEx, TNT, and EMS

When receiving the product, please ensure the integrity of the product packaging box first. If there is serious damage to the appearance, please refuse and contact us, and we will handle it for you as soon as possible.

Optical products are special items and cannot be returned or exchanged unless there is a quality issue with the product itself

If you need customization or bulk production, please contact us online and we will offer you a discounted price.

	Length(mm)	Width(mm)	ThK(mm)	Surface Quality	Surface Accuracy	Parallelism	Bevel(mm)
	Screen Reset 30 29 25 20 10 5	Screen Reset 30 29 25 20 10 5	Screen Reset 4 1.5 5 0.5 3 0.3	Screen Reset 60-40	Screen Reset 3(1)	Screen Reset 3′	Screen Reset 0.35
More+ Less	30	30	4	60-40	3(1)	3′	0.35
Sizes 30mm30mm4mm，Zinc Sulfide Rectangular Windows Number：PZS02E003 Length(mm)：30 Width(mm)：30 ThK(mm)：4 Surface Quality：60-40 Surface Accuracy：3(1) Parallelism：3′ Clear Aperture：>90% Length Tolerance(mm)：+0.0/-0.1 Width Tolerance(mm)：+0.0/-0.1 Thk Tolerance(mm)：±0.1 Substrate Material：Zinc Sulfide（ZnS） Transmission Range：0.37-14μm Bevel(mm)：0.35 Coating：Uncoated REACH：Compliant ROHS：Compliant
More+ Less	29	29	1.5	60-40	3(1)	3′	0.35
Sizes 29mm29mm1.5mm，Zinc Sulfide Rectangular Windows Number：PZS02E002 Length(mm)：29 Width(mm)：29 ThK(mm)：1.5 Surface Quality：60-40 Surface Accuracy：3(1) Parallelism：3′ Clear Aperture：>90% Length Tolerance(mm)：+0.0/-0.1 Width Tolerance(mm)：+0.0/-0.1 Thk Tolerance(mm)：±0.1 Substrate Material：Zinc Sulfide（ZnS） Transmission Range：0.37-14μm Bevel(mm)：0.35 Coating：Uncoated REACH：Compliant ROHS：Compliant
More+ Less	25	25	5	60-40	3(1)	3′	0.35
Sizes 25mm25mm5mm，Zinc Sulfide Rectangular Windows Number：PZS02E001 Length(mm)：25 Width(mm)：25 ThK(mm)：5 Surface Quality：60-40 Surface Accuracy：3(1) Parallelism：3′ Clear Aperture：>90% Length Tolerance(mm)：+0.0/-0.1 Width Tolerance(mm)：+0.0/-0.1 Thk Tolerance(mm)：±0.1 Substrate Material：Zinc Sulfide（ZnS） Transmission Range：0.37-14μm Bevel(mm)：0.35 Coating：Uncoated REACH：Compliant ROHS：Compliant
More+ Less	20	20	0.5	60-40	3(1)	3′	0.35
Sizes 20mm20mm0.5mm，Zinc Sulfide Rectangular Windows Number：PZS02D001 Length(mm)：20 Width(mm)：20 ThK(mm)：0.5 Surface Quality：60-40 Surface Accuracy：3(1) Parallelism：3′ Clear Aperture：>90% Length Tolerance(mm)：+0.0/-0.1 Width Tolerance(mm)：+0.0/-0.1 Thk Tolerance(mm)：±0.1 Substrate Material：Zinc Sulfide（ZnS） Transmission Range：0.37-14μm Bevel(mm)：0.35 Coating：Uncoated REACH：Compliant ROHS：Compliant
More+ Less	10	10	3	60-40	3(1)	3′	0.35
Sizes 10mm10mm3mm，Zinc Sulfide Rectangular Windows Number：PZS02B001 Length(mm)：10 Width(mm)：10 ThK(mm)：3 Surface Quality：60-40 Surface Accuracy：3(1) Parallelism：3′ Clear Aperture：>90% Length Tolerance(mm)：+0.0/-0.1 Width Tolerance(mm)：+0.0/-0.1 Thk Tolerance(mm)：±0.1 Substrate Material：Zinc Sulfide（ZnS） Transmission Range：0.37-14μm Bevel(mm)：0.35 Coating：Uncoated REACH：Compliant ROHS：Compliant
More+ Less	5	5	0.3	60-40	3(1)	3′	0.35
Sizes 5mm5mm0.3mm，Zinc Sulfide Rectangular Windows Number：PZS02A001 Length(mm)：5 Width(mm)：5 ThK(mm)：0.3 Surface Quality：60-40 Surface Accuracy：3(1) Parallelism：3′ Clear Aperture：>90% Length Tolerance(mm)：+0.0/-0.1 Width Tolerance(mm)：+0.0/-0.1 Thk Tolerance(mm)：±0.1 Substrate Material：Zinc Sulfide（ZnS） Transmission Range：0.37-14μm Bevel(mm)：0.35 Coating：Uncoated REACH：Compliant ROHS：Compliant

Material Data
Physical Properties	CVD ZnS	Multispectral CVD ZnS
Density [g/cm3]	4.09	4.09
Resistivity [Ω.cm]	～1012	～101.3
Melting Point [℃]	1827
Chemical Purity [%]	99.9996	99.9996
Thermal Expansion [1/K]	6.610-6@273k 7.310-6@373k	6.310-6@273k 7.010-6@373k
Thermal Conductivity [J/k.m.s]	16.7@298k	27.2@298k
Specific Heat Capacity [J/g.K]	0.469@298k	0.515@298k
Knoop Hardness [kg/mm2]	200-235	160
Bending Strength[Mpa]	103
Young's Modulus [GPa]	74.5	74.5
Poisson's Coefficient	0.29	0.29
Optical Properties

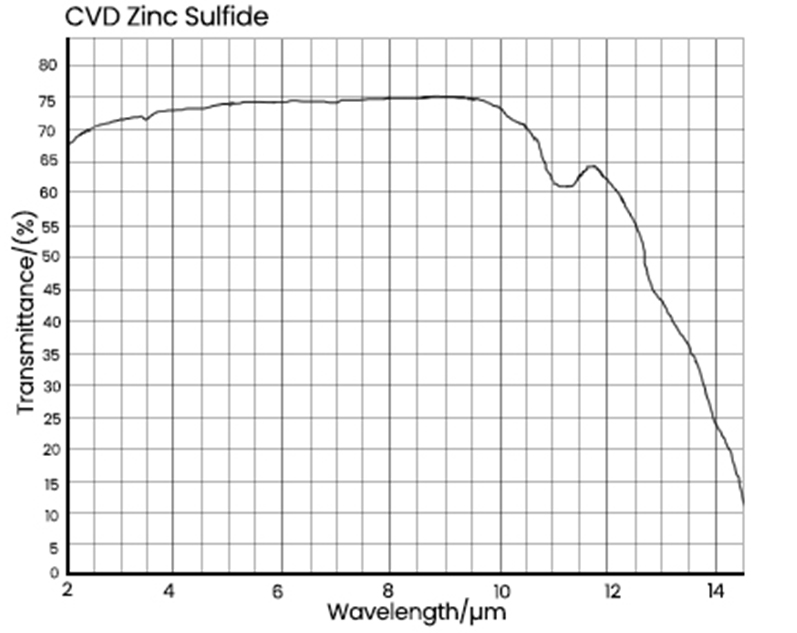

Transmission Range	1-14μm	0.37-14μm
Refractive index in homogeneity [△n/n]	<7.3*10-4@10.6μm	<0.2*10-4@632.8nm
Absorption Coefficient [1/cm]	0.2@10.6μm	0.2@10.6μm
Thermal light coefficient [1/k,298-358k]	4.610-5@1150nm 4.310-5@3390nm 4.1*10-5@10.6μm	5.4310-5@632.8nm 4.2110-5@1150nm 3.87*10-5@3390nm

CVD ZnS
Wavelength(nm)	Refractive Index(n)	Wavelength(nm)	Refractive Index(n)
620	2.355	9800	2.203
1000	2.292	10600	2.192
3800	2.253	11400	2.18
5000	2.246	12200	2.167
7000	2.232	13800	2.132
9000	2.212	14200	2.126

Multispectral CVD ZnS
Wavelength(nm)	Refractive Index(n)	Wavelength(nm)	Refractive Index(n)
400	2.545	8000	2.223
1010	2.292	9000	2.213
2060	2.264	10000	2.201
3500	2.255	11250	2.183
4500	2.25	12000	2.171
5000	2.247	13000	2.153
