Magnesium Fluoride Plano-concave Lens

Magnesium fluoride plano-concave lens is a birefringent crystal with good transmittance in ultraviolet, visible, and infrared, used in lasers, infrared optics, ultraviolet optics, and high-energy detectors. UM OPTICS can provide a diameter of 2-200mm and a thickness of 0.12-60mm (accuracy can reach 20-10, 1)/ 10L@633nm ）The magnesium fluoride plano concave lens can be coated with MgF2, UV-AR, UV-VIS, VIS-EXT, VIS-NIR, NIR I, NIR II, Telecom NIR, SWIR, SWIR, YAG-BBAR and other film systems.

I want to customize Consult

Price
Invoice
Quality
Deivery
Logistics
Receive
Returns
Customized

Please leave a message or inquire about the price online to ensure a satisfactory price for you.

All products are provided with invoices, with a tax point of 13.

The product undergoes multiple inspections before being stored, and the quality is guaranteed. Please use it with confidence.

Spot products, shipped within 48 hours. For non stock or customized products, please consult.

International order logistics include DHL, FedEx, TNT, and EMS

When receiving the product, please ensure the integrity of the product packaging box first. If there is serious damage to the appearance, please refuse and contact us, and we will handle it for you as soon as possible.

Optical products are special items and cannot be returned or exchanged unless there is a quality issue with the product itself

If you need customization or bulk production, please contact us online and we will offer you a discounted price.

	Dia(mm)	Focal Length(mm)	Center Thickness(mm)	Edge Thickness(mm)	Design Wavelength(μm)	Radius of Curvature(mm)	Surface Quality
	Screen Reset 2-200	Screen Reset 15-5000	Screen Reset 0.12-60	Screen Reset 0.12-60	Screen Reset Custom	Screen Reset Custom	Screen Reset 60-40
More+ Less	2-200	15-5000	0.12-60	0.12-60	Custom	Custom	60-40
Magnesium Fluoride Plano Concave Lenses Number：PMg04- Dia(mm)：2-200 Focal Length(mm)：15-5000 Center Thickness(mm)：0.12-60 Edge Thickness(mm)：0.12-60 Design Wavelength(μm)：Custom Radius of Curvature(mm)：Custom Surface Quality：60-40 Diameter Tolerance(mm)：+0.0/-0.1 Thk Tolerance(mm)：±0.1 Substrate Material：Magnesium Fluoride（MgF2） PV@632.8nm：λ/4 Centering：<3′ Clear Aperture：90 Coating：Uncoated REACH：Compliant ROHS：Compliant

Material Data
Optical Properties

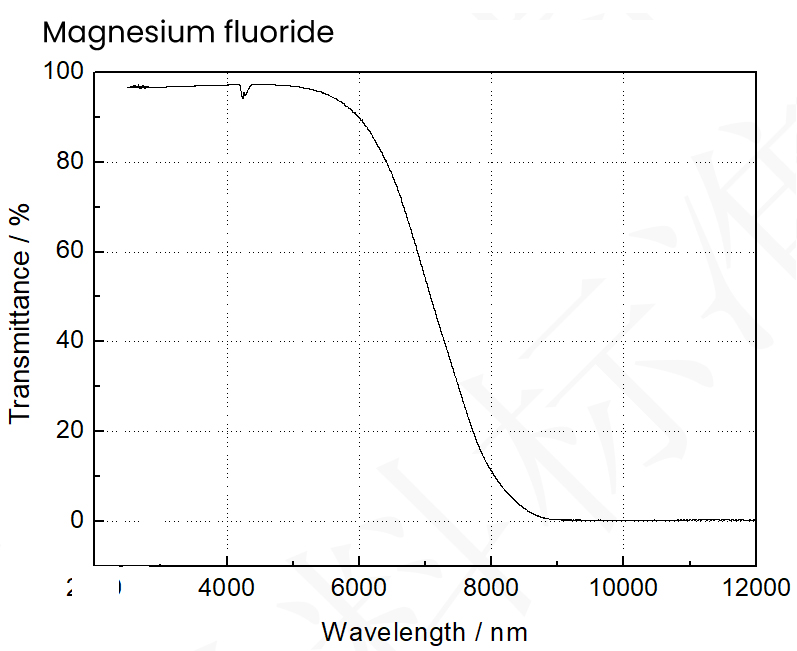

Transmission Range	0.12-9μm
Transmittance	>90%@0.193-6μm
Refractive Index	NO=1.566,Ne=1.568@0.13μm NO=1.334,Ne=1.343@5μm
Reflection Loss	11.2%@0.12nm(both surfaces) 5.7%@0.22μm(both surfaces) 5.1%@1μm(both surfaces)
Absorption Coefficienet	40×10-3@2.7μm
Structure	square crystal system
Cleavage Planes	<100>
Physical Properties
Density [g/cm3]	3.177
Melting Point [℃]	1255
Thermal Conductivity [W/(m×K)]	21 //c, 33.6⊥c @ 300K
Thermal Expansion [10-6/K]	13.7//c, 8.9 ⊥c @ 373k
Knoop Hardness [kg/mm2]	415
Specific Heat Capacity [J/(kg×K)]	1003
Dielectric Constant	4.87 //c, 5.44⊥c @ 1MHz
Young's Modulus (E) [GPa]	138.5
Shear Modulus(G) [GPa]	54.66
Bulk Modulus(K) [GPa]	101.32
Poisson Coefficient	0.276
Chemical Properties
Solubility / g/L	0.002g @ 20℃
Molecular Weight / g/mol	62.3018
