    • Calcium Fluoride Plano-concave Lens

    Calcium fluoride plano-concave lenses have a flat surface on one side and a concave surface on the other, commonly used for beam collimation, increasing (decreasing) focal length, or enlarging (reducing) images. Calcium fluoride material has the characteristics of a wide transmission spectrum range, high damage threshold, low fluorescence, and high uniformity. In addition, it also has a negative focal length, which can be used for beam collimation and expanding the focal length of optical systems. It can be coated with MgF2, UV-AR, UV-VIS, VIS-EXT, VIS-NIR, NIR I, NIR II, Telecom NIR, SWIR, SWIR, YAG-BBAR and other film systems.

    I want to customize Consult
    • Price
    • Invoice
    • Quality
    • Deivery
    • Logistics
    • Receive
    • Returns
    • Customized

    Please leave a message or inquire about the price online to ensure a satisfactory price for you.

    All products are provided with invoices, with a tax point of 13.

    The product undergoes multiple inspections before being stored, and the quality is guaranteed. Please use it with confidence.

    Spot products, shipped within 48 hours. For non stock or customized products, please consult.

    International order logistics include DHL, FedEx, TNT, and EMS

    When receiving the product, please ensure the integrity of the product packaging box first. If there is serious damage to the appearance, please refuse and contact us, and we will handle it for you as soon as possible.

    Optical products are special items and cannot be returned or exchanged unless there is a quality issue with the product itself

    If you need customization or bulk production, please contact us online and we will offer you a discounted price.

    Technical Parameter

    Material Data

    Transmittance

    Application Field

    Related Products
      Dia(mm) Focal Length(mm) Center Thickness(mm) Edge Thickness(mm) Design Wavelength(μm) Radius of Curvature(mm) Compare
      Screen

    Reset

    25.4 12.7
    		Screen

    Reset

    F-500 F-200 F-100 F-75 F-40 F-150 F-25 F-18
    		Screen

    Reset

    4 3.5 3 2.5 2 1.8 2.7 2.4
    		Screen

    Reset

    4.4 4.9 5.1 7.5 2 3 5.6 5.30
    		Screen

    Reset

    0.588 2.94
    		Screen

    Reset

    -216.9 -86.8 -43.4 -32.5 -17.4 -83.6 -62.7 -31.4 -10.9 -7.8

    More+ Less 25.4 F-500 4 4.4 0.588 -216.9

    Φ25.4mm，F-500，Calcium Fluoride Plano Concave Lenses

    Number：PCa04E008

    Dia(mm)：25.4 Focal Length(mm)：F-500 Center Thickness(mm)：4 Edge Thickness(mm)：4.4 Design Wavelength(μm)：0.588 Radius of Curvature(mm)：-216.9 Surface Quality：40-20 Diameter Tolerance(mm)：+0.0/-0.1 Thk Tolerance(mm)：±0.1 Substrate Material：Calcium Fluoride（CaF2） Power@632.8nm：3/2λ Irregularity@632.8nm：/ PV@632.8nm：λ/4 Centering：<3′ Clear Aperture：>90% Coating：Uncoated REACH：Compliant ROHS：Compliant
    More+ Less 25.4 F-200 3.5 4.4 0.588 -86.8

    Φ25.4mm，F-200，Calcium Fluoride Plano Concave Lenses

    Number：PCa04E007

    Dia(mm)：25.4 Focal Length(mm)：F-200 Center Thickness(mm)：3.5 Edge Thickness(mm)：4.4 Design Wavelength(μm)：0.588 Radius of Curvature(mm)：-86.8 Surface Quality：40-20 Diameter Tolerance(mm)：+0.0/-0.1 Thk Tolerance(mm)：±0.1 Substrate Material：Calcium Fluoride（CaF2） Power@632.8nm：3/2λ Irregularity@632.8nm：/ PV@632.8nm：λ/4 Centering：<3′ Clear Aperture：>90% Coating：Uncoated REACH：Compliant ROHS：Compliant
    More+ Less 25.4 F-100 3 4.9 0.588 -43.4

    Φ25.4mm，F-100，Calcium Fluoride Plano Concave Lenses

    Number：PCa04E006

    Dia(mm)：25.4 Focal Length(mm)：F-100 Center Thickness(mm)：3 Edge Thickness(mm)：4.9 Design Wavelength(μm)：0.588 Radius of Curvature(mm)：-43.4 Surface Quality：40-20 Diameter Tolerance(mm)：+0.0/-0.1 Thk Tolerance(mm)：±0.1 Substrate Material：Calcium Fluoride（CaF2） Power@632.8nm：3/2λ Irregularity@632.8nm：/ PV@632.8nm：λ/4 Centering：<3′ Clear Aperture：>90% Coating：Uncoated REACH：Compliant ROHS：Compliant
    More+ Less 25.4 F-75 2.5 5.1 0.588 -32.5

    Φ25.4mm，F-75，Calcium Fluoride Plano Concave Lenses

    Number：PCa04E005

    Dia(mm)：25.4 Focal Length(mm)：F-75 Center Thickness(mm)：2.5 Edge Thickness(mm)：5.1 Design Wavelength(μm)：0.588 Radius of Curvature(mm)：-32.5 Surface Quality：40-20 Diameter Tolerance(mm)：+0.0/-0.1 Thk Tolerance(mm)：±0.1 Substrate Material：Calcium Fluoride（CaF2） Power@632.8nm：3/2λ Irregularity@632.8nm：/ PV@632.8nm：λ/4 Centering：<3′ Clear Aperture：>90% Coating：Uncoated REACH：Compliant ROHS：Compliant
    More+ Less 25.4 F-40 2 7.5 0.588 -17.4

    Φ25.4mm，F-40，Calcium Fluoride Plano Concave Lenses

    Number：PCa04E004

    Dia(mm)：25.4 Focal Length(mm)：F-40 Center Thickness(mm)：2 Edge Thickness(mm)：7.5 Design Wavelength(μm)：0.588 Radius of Curvature(mm)：-17.4 Surface Quality：40-20 Diameter Tolerance(mm)：+0.0/-0.1 Thk Tolerance(mm)：±0.1 Substrate Material：Calcium Fluoride（CaF2） Power@632.8nm：3/2λ Irregularity@632.8nm：/ PV@632.8nm：λ/4 Centering：<3′ Clear Aperture：>90% Coating：Uncoated REACH：Compliant ROHS：Compliant
    More+ Less 12.7 F-200 1.8 2 2.94 -83.6

    Φ12.7mm，F-200，Calcium Fluoride Plano Concave Lenses

    Number：PCa04C011

    Dia(mm)：12.7 Focal Length(mm)：F-200 Center Thickness(mm)：1.8 Edge Thickness(mm)：2 Design Wavelength(μm)：2.94 Radius of Curvature(mm)：-83.6 Surface Quality：40-20 Diameter Tolerance(mm)：+0.0/-0.1 Thk Tolerance(mm)：±0.1 Substrate Material：Calcium Fluoride（CaF2） Power@632.8nm：/ Irregularity@632.8nm：λ/4 PV@632.8nm：/ Centering：<3′ Clear Aperture：>90% Coating：Uncoated REACH：Compliant ROHS：Compliant
    More+ Less 12.7 F-150 2.7 3 2.94 -62.7

    Φ12.7mm，F-150，Calcium Fluoride Plano Concave Lenses

    Number：PCa04C010

    Dia(mm)：12.7 Focal Length(mm)：F-150 Center Thickness(mm)：2.7 Edge Thickness(mm)：3 Design Wavelength(μm)：2.94 Radius of Curvature(mm)：-62.7 Surface Quality：40-20 Diameter Tolerance(mm)：+0.0/-0.1 Thk Tolerance(mm)：±0.1 Substrate Material：Calcium Fluoride（CaF2） Power@632.8nm：/ Irregularity@632.8nm：λ/4 PV@632.8nm：/ Centering：<3′ Clear Aperture：>90% Coating：Uncoated REACH：Compliant ROHS：Compliant
    More+ Less 12.7 F-75 2.4 3 2.94 -31.4

    Φ12.7mm，F-75，Calcium Fluoride Plano Concave Lenses

    Number：PCa04C008

    Dia(mm)：12.7 Focal Length(mm)：F-75 Center Thickness(mm)：2.4 Edge Thickness(mm)：3 Design Wavelength(μm)：2.94 Radius of Curvature(mm)：-31.4 Surface Quality：40-20 Diameter Tolerance(mm)：+0.0/-0.1 Thk Tolerance(mm)：±0.1 Substrate Material：Calcium Fluoride（CaF2） Power@632.8nm：/ Irregularity@632.8nm：λ/4 PV@632.8nm：/ Centering：<3′ Clear Aperture：>90% Coating：Uncoated REACH：Compliant ROHS：Compliant
    More+ Less 12.7 F-25 2.5 5.6 0.588 -10.9

    Φ12.7mm，F-25，Calcium Fluoride Plano Concave Lenses

    Number：PCa04C002

    Dia(mm)：12.7 Focal Length(mm)：F-25 Center Thickness(mm)：2.5 Edge Thickness(mm)：5.6 Design Wavelength(μm)：0.588 Radius of Curvature(mm)：-10.9 Surface Quality：40-20 Diameter Tolerance(mm)：+0.0/-0.1 Thk Tolerance(mm)：±0.1 Substrate Material：Calcium Fluoride（CaF2） Power@632.8nm：3λ/2 Irregularity@632.8nm：/ PV@632.8nm：λ/4 Centering：<3′ Clear Aperture：>90% Coating：Uncoated REACH：Compliant ROHS：Compliant
    More+ Less 12.7 F-18 2 5.30 0.588 -7.8

    Φ12.7mm，F-18，Calcium Fluoride Plano Concave Lenses

    Number：PCa04C001

    Dia(mm)：12.7 Focal Length(mm)：F-18 Center Thickness(mm)：2 Edge Thickness(mm)：5.30 Design Wavelength(μm)：0.588 Radius of Curvature(mm)：-7.8 Surface Quality：40-20 Diameter Tolerance(mm)：+0.0/-0.1 Thk Tolerance(mm)：±0.1 Substrate Material：Calcium Fluoride（CaF2） Power@632.8nm：3λ/2 Irregularity@632.8nm：/ PV@632.8nm：λ/4 Centering：<3′ Clear Aperture：>90% Coating：Uncoated REACH：Compliant ROHS：Compliant
    Material Data
    Optical Properties
    Transmission Range0.13-10μm
    Transmittance>94%@193nm-7.87μm
    Refractive Index

    1.4288@2.5μm

    1.39908@5μm

    Reflection Loss5.4%@5μm(both surfaces)
    Absorption Coefficienet7.8×10-4@2.7μm
    StructureCubic Crystal System
    Cleavage Planes<111>
    Physical Properties
    Density [g/cm3]3.18
    Melting Point [℃]1420
    Thermal Conductivity [W/(m×K)]9.71 @ 293K
    Thermal Expansion [10-6/K]18.5 @ 273K
    Knoop Hardness [kg/mm2]158.3
    Specific Heat Capacity [J/(kg×K)]854
    Dielectric Constant6.76 @ 1 MHz
    Young's Modulus (E) [GPa]75.8
    Shear Modulus(G) [GPa]33.77
    Bulk Modulus(K) [GPa]82.71
    Poisson Coefficient0.26
    Chemical Properties
    Solubility / g/L0.016g @ 20℃
    Molecular Weight / g/mol78.0748

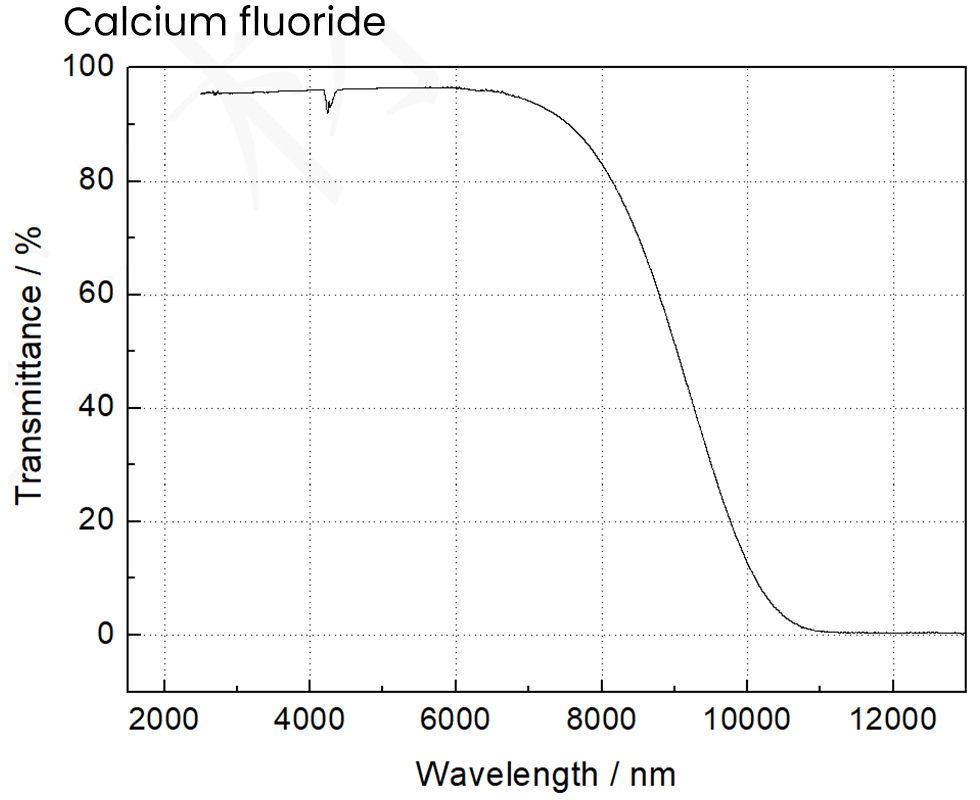

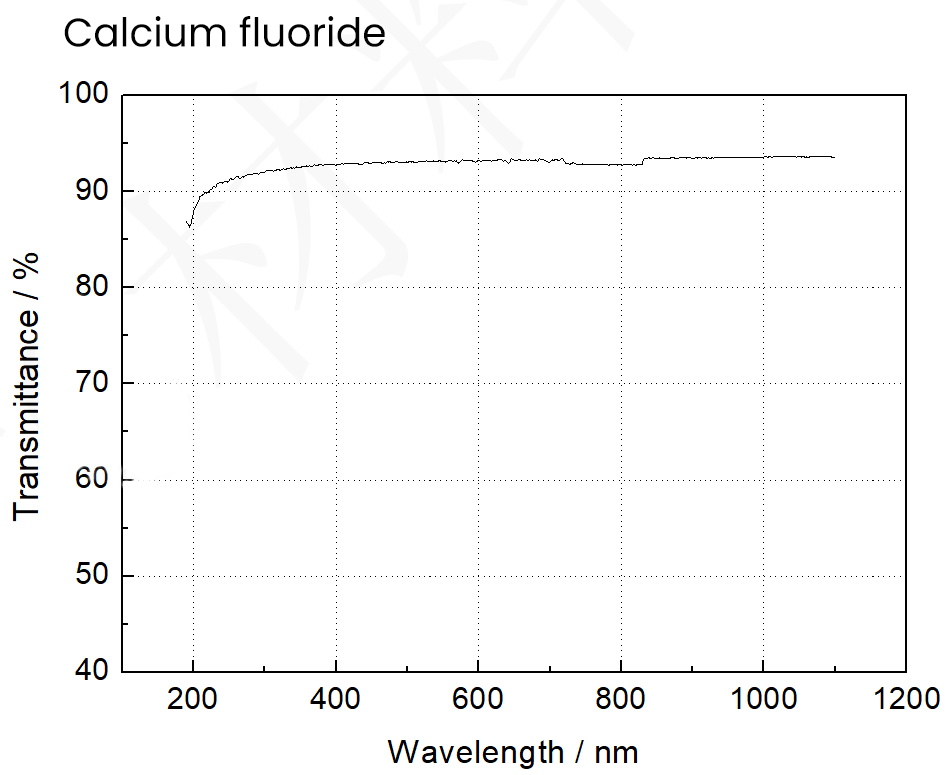

    Calcium Fluoride Transmittance CurveCalcium Fluoride Transmittance Curve
