Zinc Sulfide Biconvex Lens

The characteristic of zinc sulfide biconvex lenses is that the focal length of the middle part of the lens surface is longer, and the focal length of the end part of the lens surface is shorter. Made of zinc sulfide material, it has excellent optical and mechanical properties. Zinc sulfide biconvex lenses are used to concentrate light from point sources or transmit images to other optical systems. It has a high optical transmittance and good optical properties in multiple spectral bands. UM OPTICS provides a diameter of 2-300mm and a thickness of 0.12-60mm (with an accuracy of 20-10,1)/ 10L@633nm ）The zinc sulfide biconvex lens can be coated with MgF2, UV-AR, UV-VIS, VIS-EXT, VIS-NIR, NIR I, NIR II, Telecom NIR, SWIR, SWIR, YAG-BBAR and other film systems.

I want to customize Consult

Price
Invoice
Quality
Deivery
Logistics
Receive
Returns
Customized

Please leave a message or inquire about the price online to ensure a satisfactory price for you.

All products are provided with invoices, with a tax point of 13.

The product undergoes multiple inspections before being stored, and the quality is guaranteed. Please use it with confidence.

Spot products, shipped within 48 hours. For non stock or customized products, please consult.

International order logistics include DHL, FedEx, TNT, and EMS

When receiving the product, please ensure the integrity of the product packaging box first. If there is serious damage to the appearance, please refuse and contact us, and we will handle it for you as soon as possible.

Optical products are special items and cannot be returned or exchanged unless there is a quality issue with the product itself

If you need customization or bulk production, please contact us online and we will offer you a discounted price.

	Dia(mm)	Focal Length(mm)	Center Thickness(mm)	Edge Thickness(mm)	Design Wavelength(μm)	Radius of Curvature(mm)	Surface Quality
	Screen Reset 2-300	Screen Reset 15-5000	Screen Reset 0.12-60	Screen Reset 0.12-60	Screen Reset Custom	Screen Reset Custom	Screen Reset 60-40
More+ Less	2-300	15-5000	0.12-60	0.12-60	Custom	Custom	60-40
Zinc Sulfide Biconvex Lenses Number：PZS05- Dia(mm)：2-300 Focal Length(mm)：15-5000 Center Thickness(mm)：0.12-60 Edge Thickness(mm)：0.12-60 Design Wavelength(μm)：Custom Radius of Curvature(mm)：Custom Surface Quality：60-40 Diameter Tolerance(mm)：+0.0/-0.1 Thk Tolerance(mm)：±0.1 Substrate Material：Zinc Sulfide（ZnS） PV@632.8nm：λ/4 Centering：<3′ Clear Aperture：>90% Coating：Uncoated REACH：Compliant ROHS：Compliant

Material Data
Physical Properties	CVD ZnS	Multispectral CVD ZnS
Density [g/cm3]	4.09	4.09
Resistivity [Ω.cm]	～1012	～101.3
Melting Point [℃]	1827
Chemical Purity [%]	99.9996	99.9996
Thermal Expansion [1/K]	6.610-6@273k 7.310-6@373k	6.310-6@273k 7.010-6@373k
Thermal Conductivity [J/k.m.s]	16.7@298k	27.2@298k
Specific Heat Capacity [J/g.K]	0.469@298k	0.515@298k
Knoop Hardness [kg/mm²]	200-235	160
Bending Strength [Mpa]	103
Young's Modulus [GPa]	74.5	74.5
Poisson's Coefficient	0.29	0.29
Optical Properties

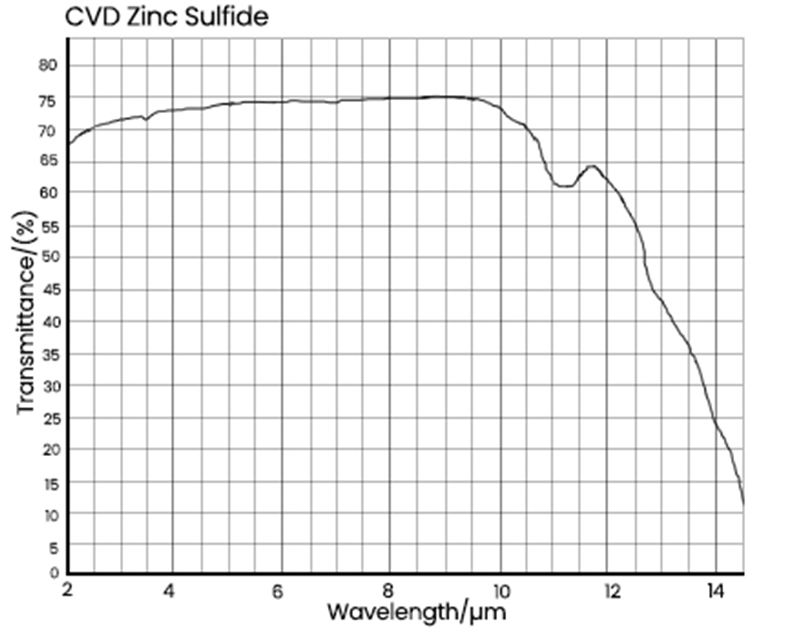

Transmission Range	1-14μm	0.37-14μm
Refractive index inhomogeneity [△n/n]	<7.3*10-4@10.6μm	<0.2*10-4@632.8nm
Absorption Coefficient [1/cm]	0.2@10.6μm	0.2@10.6μm
Thermal light coefficient [1/k,298-358k]	4.610-5@1150nm 4.310-5@3390nm 4.1*10-5@10.6μm	5.4310-5@632.8nm 4.2110-5@1150nm 3.87*10-5@3390nm

CVD ZnS
Wavelength(nm)	Refractive Index(n)	Wavelength(nm)	Refractive Index(n)
620	2.355	9800	2.203
1000	2.292	10600	2.192
3800	2.253	11400	2.18
5000	2.246	12200	2.167
7000	2.232	13800	2.132
9000	2.212	14200	2.126

Multispectral CVD ZnS
Wavelength(nm)	Refractive Index(n)	Wavelength(nm)	Refractive Index(n)
400	2.545	8000	2.223
1010	2.292	9000	2.213
2060	2.264	10000	2.201
3500	2.255	11250	2.183
4500	2.25	12000	2.171
5000	2.247	13000	2.153
