Silicon Right Angle Prisms

Silicon right angle prisms have high refractive index (about 1.59) and high transparency, with high-precision surface quality and optical performance. Silicon right angle prisms have high transmittance in the range of ultraviolet to near-infrared, and can resist the influence of environmental temperature and mechanical stress. They can be used for reflecting and turning light, changing the direction of the beam. It can also be used in optical systems as beam splitters, combiners, and imaging components to improve the performance and stability of optical systems. Micron optics can provide calcium fluoride right angle prisms with a size of 2-100mm.

I want to customize Consult

Price
Invoice
Quality
Deivery
Logistics
Receive
Returns
Customized

Please leave a message or inquire about the price online to ensure a satisfactory price for you.

All products are provided with invoices, with a tax point of 13.

The product undergoes multiple inspections before being stored, and the quality is guaranteed. Please use it with confidence.

Spot products, shipped within 48 hours. For non stock or customized products, please consult.

International order logistics include DHL, FedEx, TNT, and EMS

When receiving the product, please ensure the integrity of the product packaging box first. If there is serious damage to the appearance, please refuse and contact us, and we will handle it for you as soon as possible.

Optical products are special items and cannot be returned or exchanged unless there is a quality issue with the product itself

If you need customization or bulk production, please contact us online and we will offer you a discounted price.

	Right Angle Edge(mm)	Hypotenuse(mm)	Surface Quality	Surface accuracy
	Screen Reset 50 45 40 35 30 25 20 15 12.5 10 5	Screen Reset 70.7 63.6 56.6 49.5 42.4 35.4 28.3 21.2 17.5 14.1 7.07	Screen Reset 60-40	Screen Reset λ/4@633nm
More+ Less	50	70.7	60-40	λ/4@633nm
Silicon Right Angle Prism，Right Angle Edge 50mm，Hypotenuse 70.7mm Number：PSiPRM011 Right Angle Edge(mm)：50 Hypotenuse(mm)：70.7 Surface Quality：60-40 Dim Tolerance(mm)：±0.1 Angle tolerance：±1° Substrate Material：Silicon（Si） Surface accuracy：λ/4@633nm Coating：Uncoated
More+ Less	45	63.6	60-40	λ/4@633nm
Silicon Right Angle Prism，Right Angle Edge 45mm，Hypotenuse 63.6mm Number：PSiPRM010 Right Angle Edge(mm)：45 Hypotenuse(mm)：63.6 Surface Quality：60-40 Dim Tolerance(mm)：±0.1 Angle tolerance：±1° Substrate Material：Silicon（Si） Surface accuracy：λ/4@633nm Coating：Uncoated
More+ Less	40	56.6	60-40	λ/4@633nm
Silicon Right Angle Prism，Right Angle Edge 40mm，Hypotenuse 56.6mm Number：PSiPRM009 Right Angle Edge(mm)：40 Hypotenuse(mm)：56.6 Surface Quality：60-40 Dim Tolerance(mm)：±0.1 Angle tolerance：±1° Substrate Material：Silicon（Si） Surface accuracy：λ/4@633nm Coating：Uncoated
More+ Less	35	49.5	60-40	λ/4@633nm
Silicon Right Angle Prism，Right Angle Edge 35mm，Hypotenuse 49.5mm Number：PSiPRM008 Right Angle Edge(mm)：35 Hypotenuse(mm)：49.5 Surface Quality：60-40 Dim Tolerance(mm)：±0.1 Angle tolerance：±1° Substrate Material：Silicon（Si） Surface accuracy：λ/4@633nm Coating：Uncoated
More+ Less	30	42.4	60-40	λ/4@633nm
Silicon Right Angle Prism，Right Angle Edge 30mm，Hypotenuse 42.4mm Number：PSiPRM007 Right Angle Edge(mm)：30 Hypotenuse(mm)：42.4 Surface Quality：60-40 Dim Tolerance(mm)：±0.1 Angle tolerance：±1° Substrate Material：Silicon（Si） Surface accuracy：λ/4@633nm Coating：Uncoated
More+ Less	25	35.4	60-40	λ/4@633nm
Silicon Right Angle Prism，Right Angle Edge 25mm，Hypotenuse 35.4mm Number：PSiPRM006 Right Angle Edge(mm)：25 Hypotenuse(mm)：35.4 Surface Quality：60-40 Dim Tolerance(mm)：±0.1 Angle tolerance：±1° Substrate Material：Silicon（Si） Surface accuracy：λ/4@633nm Coating：Uncoated
More+ Less	20	28.3	60-40	λ/4@633nm
Silicon Right Angle Prism，Right Angle Edge 20mm，Hypotenuse 28.3mm Number：PSiPRM005 Right Angle Edge(mm)：20 Hypotenuse(mm)：28.3 Surface Quality：60-40 Dim Tolerance(mm)：±0.1 Angle tolerance：±1° Substrate Material：Silicon（Si） Surface accuracy：λ/4@633nm Coating：Uncoated
More+ Less	15	21.2	60-40	λ/4@633nm
Silicon Right Angle Prism，Right Angle Edge 15mm，Hypotenuse 21.2mm Number：PSiPRM004 Right Angle Edge(mm)：15 Hypotenuse(mm)：21.2 Surface Quality：60-40 Dim Tolerance(mm)：±0.1 Angle tolerance：±1° Substrate Material：Silicon（Si） Surface accuracy：λ/4@633nm Coating：Uncoated
More+ Less	12.5	17.5	60-40	λ/4@633nm
Silicon Right Angle Prism，Right Angle Edge 12.5mm，Hypotenuse 17.5mm Number：PSiPRM003 Right Angle Edge(mm)：12.5 Hypotenuse(mm)：17.5 Surface Quality：60-40 Dim Tolerance(mm)：±0.1 Angle tolerance：±1° Substrate Material：Silicon（Si） Surface accuracy：λ/4@633nm Coating：Uncoated
More+ Less	10	14.1	60-40	λ/4@633nm
Silicon Right Angle Prism，Right Angle Edge 10mm，Hypotenuse 14.1mm Number：PSiPRM002 Right Angle Edge(mm)：10 Hypotenuse(mm)：14.1 Surface Quality：60-40 Dim Tolerance(mm)：±0.1 Angle tolerance：±1° Substrate Material：Silicon（Si） Surface accuracy：λ/4@633nm Coating：Uncoated

Material Data
Optical Properties
Transmission Range	1.2-15μm
Refractive Index	3.41776%@10μm
Reflection Loss	46.1%@10μm
Structure	Single crystal,synthetic
Cleavage Planes	<111>
Physical Properties
Density [g/cm3]	2.33
Melting Point [℃]	1414
Thermal Conductivity [W/(m×K)]	163 @ 313K
Thermal Expansion [10-6/K]	2.6 @ 293K
Knoop Hardness [kg/mm2]	1100
Specific Heat Capacity [J/(kg×K)]	712.8
Dielectric Constant	13 @f= 9.37GHz
Young's Modulus (E) [GPa]	130.91
Shear Modulus(G) [GPa]	79.92
Bulk Modulus(K) [GPa]	101.97
Poisson Coefficient	0.266
Chemical Properties
Solubility / g/L	None
Molecular Weight / g/mol	28.09

Silicon Right Angle Prisms

Technical Parameter

Material Data

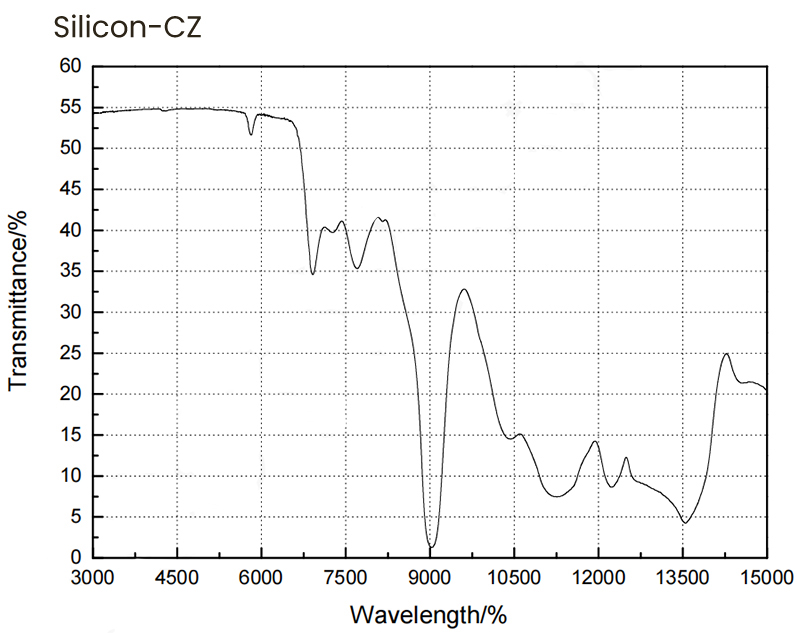

Transmittance
