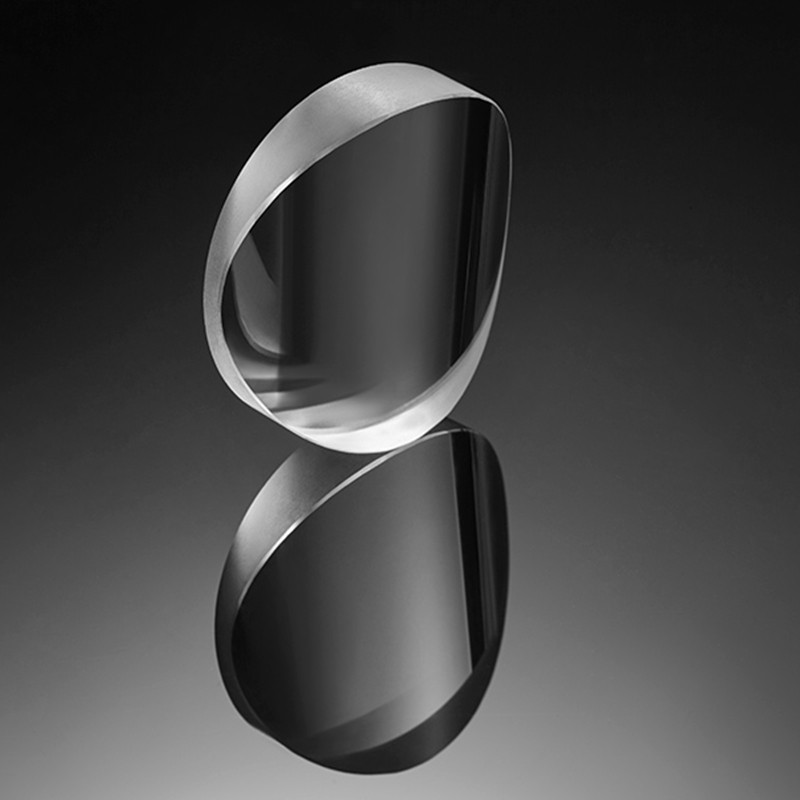

Calcium Fluoride Plano-convex Cylindrical Lens

Calcium fluoride cylindrical lenses have high transmittance and a wide spectral range, with high transmittance in the ultraviolet, visible, and near-infrared spectral regions. It also has a lower refractive index and dispersion index, which can effectively correct chromatic aberration and reduce beam divergence. Applied in lasers, telescopes, microscopes, etc. Can be coated with reflective film, anti reflective film, filter film, spectroscopic film, polarizing film, and metallization film systems.

I want to customize Consult

Price
Invoice
Quality
Deivery
Logistics
Receive
Returns
Customized

Please leave a message or inquire about the price online to ensure a satisfactory price for you.

All products are provided with invoices, with a tax point of 13.

The product undergoes multiple inspections before being stored, and the quality is guaranteed. Please use it with confidence.

Spot products, shipped within 48 hours. For non stock or customized products, please consult.

International order logistics include DHL, FedEx, TNT, and EMS

When receiving the product, please ensure the integrity of the product packaging box first. If there is serious damage to the appearance, please refuse and contact us, and we will handle it for you as soon as possible.

Optical products are special items and cannot be returned or exchanged unless there is a quality issue with the product itself

If you need customization or bulk production, please contact us online and we will offer you a discounted price.

	Dia(mm)	Focal Length(mm)	ThK(mm)	Radius of Curvature(mm)
	Screen Reset 25.4 12.7	Screen Reset 100 75 50 80	Screen Reset 4 4.5 6 2.5 3	Screen Reset 40.96 30.72 20.48 32.77
More+ Less	25.4	100	4	40.96
Calcium Fluoride Plano Convex Cylindrical Lens，φ25.4mm，Focal Length 100mm Number：PCaCYX005 Dia(mm)：25.4 Focal Length(mm)：100 ThK(mm)：4 Radius of Curvature(mm)：40.96 Design Wavelength(μm)：4 Diameter Tolerance(mm)：+0.0/-0.1 Thk Tolerance(mm)：±0.1 Substrate Material：Calcium Fluoride（CaF2） Surface Quality：60-40 Centering：<3′ Bevel(mm)：0.35 Coating：Uncoated
More+ Less	25.4	75	4.5	30.72
Calcium Fluoride Plano Convex Cylindrical Lens，φ25.4mm，Focal Length 75mm Number：PCaCYX004 Dia(mm)：25.4 Focal Length(mm)：75 ThK(mm)：4.5 Radius of Curvature(mm)：30.72 Design Wavelength(μm)：4 Diameter Tolerance(mm)：+0.0/-0.1 Thk Tolerance(mm)：±0.1 Substrate Material：Calcium Fluoride（CaF2） Surface Quality：60-40 Centering：<3′ Bevel(mm)：0.35 Coating：Uncoated
More+ Less	25.4	50	6	20.48
Calcium Fluoride Plano Convex Cylindrical Lens，φ25.4mm，Focal Length 50mm Number：PCaCYX003 Dia(mm)：25.4 Focal Length(mm)：50 ThK(mm)：6 Radius of Curvature(mm)：20.48 Design Wavelength(μm)：4 Diameter Tolerance(mm)：+0.0/-0.1 Thk Tolerance(mm)：±0.1 Substrate Material：Calcium Fluoride（CaF2） Surface Quality：60-40 Centering：<3′ Bevel(mm)：0.35 Coating：Uncoated
More+ Less	12.7	80	2.5	32.77
Calcium Fluoride Plano Convex Cylindrical Lens，φ12.7mm，Focal Length 80mm Number：PCaCYX002 Dia(mm)：12.7 Focal Length(mm)：80 ThK(mm)：2.5 Radius of Curvature(mm)：32.77 Design Wavelength(μm)：4 Diameter Tolerance(mm)：+0.0/-0.1 Thk Tolerance(mm)：±0.1 Substrate Material：Calcium Fluoride（CaF2） Surface Quality：60-40 Centering：<3′ Bevel(mm)：0.35 Coating：Uncoated
More+ Less	12.7	50	3	20.48
Calcium Fluoride Plano Convex Cylindrical Lens，φ12.7mm， Focal Length 50mm Number：PCaCYX001 Dia(mm)：12.7 Focal Length(mm)：50 ThK(mm)：3 Radius of Curvature(mm)：20.48 Design Wavelength(μm)：4 Diameter Tolerance(mm)：+0.0/-0.1 Thk Tolerance(mm)：±0.1 Substrate Material：Calcium Fluoride（CaF2） Surface Quality：60-40 Centering：<3′ Bevel(mm)：0.35 Coating：Uncoated

Material Data
Optical Properties
Transmission Range	0.13-10μm
Transmittance	>94%@193nm-7.87μm
Refractive Index	1.4288@2.5μm 1.39908@5μm
Reflection Loss	5.4%@5μm(both surfaces)
Absorption Coefficienet	7.8×10^-4@2.7μm
Structure	Cubic Crystal System
Cleavage Planes	<111>
Physical Properties
Density [g/cm3]	3.18
Melting Point [℃]	1420
Thermal Conductivity [W/(m×K)]	9.71 @ 293K
Thermal Expansion [10-6/K]	18.5 @ 273K
Knoop Hardness [kg/mm2]	158.3
Specific Heat Capacity [J/(kg×K)]	854
Dielectric Constant	6.76 @ 1 MHz
Young's Modulus (E) [GPa]	75.8
Shear Modulus(G) [GPa]	33.77
Bulk Modulus(K) [GPa]	82.71
Poisson Coefficient	0.26
Chemical Properties
Solubility / g/L	0.016g @ 20℃
Molecular Weight / g/mol	78.0748

Calcium Fluoride Plano-convex Cylindrical Lens
